Welded plate heat exchanger (ASV)

  • DETAILS

Lanpec welded plate heat exchangers provide efficient heat transfer with compact footprint, for the demanding process applications. They are designed for high pressure and high temperature, providing security when dealing with dangerous fluids. The heat exchangers are used in a wide range of cooling, heating, evaporation and condensing duties.


The welded plate heat exchanger (All be called as welded or fully welded type) adopts welding sealing structure, thus avoids the limitation of medium, temperature and pressure on the sealing gasket of traditional plate & frame heat exchangers, expands the application field and greatly improving its reliability.


Welded plate heat exchanger features all welded corrugated plates pack without gasket that produce highly turbulent flow in a true counter-current direction. The result is high efficiency in a very compact design. Due to the smaller size and reduced material content, welded plate heat exchangers can be the most economical heat transfer choice.

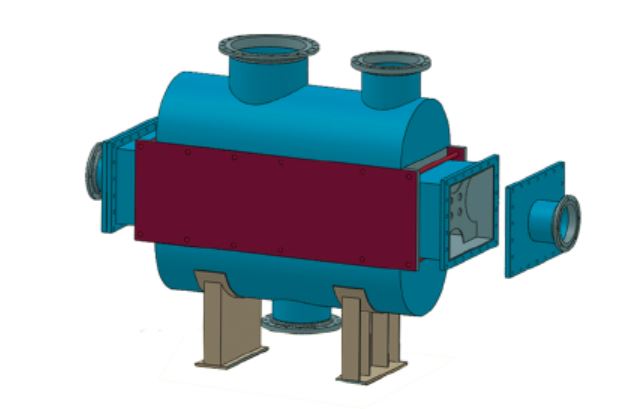

Two of the typical welded plate & frame heat exchanger configurations:


All frame components are bolted together for easily dismantling to clean and maintain the plate pack

The welded plate heat exchanger has the advantages of high heat transfer efficiency, strong self-cleaning ability, low metal consumption, compact structure, and small footprint. It can be widely used in electric power, petroleum, chemical, metallurgy, food, medicine and other fields.

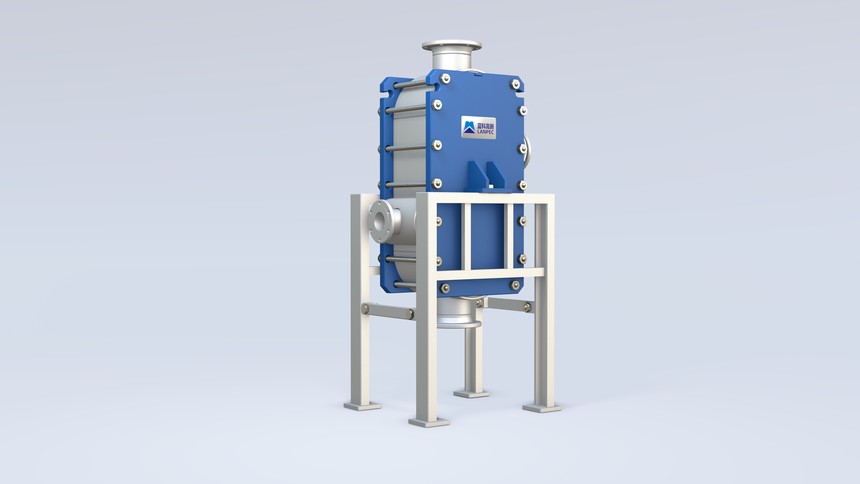

A lanpec welded plate heat exchanger typical vertical layout:



Product parameters:

# Surface area: 4 ㎡ to 3000 ㎡

# Plate width: 150 mm to 2000 mm

# Plate length: 0.3 m to 5 m

# Design pressure: ≤ 5.0 MPa

# Design Temp.: ≤ 500 ℃


The main materials are as follows:

# Carbon Steel

# Stainless Steel

# Titanium

# High Nickel Alloys

# Duplex


Material grades:

#AISI 304 #316L #321 #S32205 #S32507 #S31254 #Nickel Alloy # Ti,


Applicable unit:

#Sulfur recovery unit solvent regeneration unit

#Natural gas dehydration device solvent regeneration unit

#Hydrogen peroxide unit

#Power Plant


Design standards:

# ASME

# API

# GB


More details, please refer to the specific welded plate heat exchanger family products:


1. Visit A: The overhead plate type condensers

2. Visit B: Welded plate-and-block heat exchangers (LanBloc)

3. Visit C: Welded plate-and-block heat exchangers (Free flow)

4. Visit D: Welded plate air coolers (LBK)

5. Visit E: Welded plate air preheaters (LKY)
